About Polyga

Polyga is a developer of 3D scanners and mesh processing software based in Vancouver, Canada. More than 10 years of experience building structured light 3D scanners and software enables to meet complex 3D imaging requirements.

The High Definition Imaging (HDI) 3D scanners use structured-light technology for capturing high-resolution digital 3D scans from real world objects. These systems are great for companies, manufacturers, academic institutions, visual effect studios, and research labs that need 3D scan data for visualization and measurement applications including:

  • 3D modelling
  • documentation/archiving
  • reverse engineering
  • scientific measurement
  • computer-aided inspection
  • rapid prototyping/3D printing
Polyga-scanners-hdi-3d-scans.v2

HDI Compact 3D scanners

hdi-scanning-diagram-no-words

The HDI Compact 3D scanners are designed for demanding industry applications that depend on accurate and repeatable scanning results. These portable systems combine the best of both worlds: the convenience of consumer-grade 3D scanners while producing industrial grade quality results of professional 3D scanners. They use LED structured-light technology to deliver stunning 3D scan results.

How It Works:

The HDI Compact takes a 3D image of what it can see at one time. To create a digital model of the entire object, scans have to be taken from all angles. It uses the following components to capture a 3D scan:

  • Capturing Unit: The light source (LED light) projects a series of patterns onto the scan target. The patterns become distorted when projected onto the object’s surface. Duo cameras capture these images and send them to FlexScan3D.
  • FlexScan3D Software: The control centre that runs the entire operation. It uses the captured images to calculate the object’s depth and surface information to create a 3D scan. FlexScan3D then cleans, merges, and stitches multiple scans together (known as post-processing) in order to create a complete digital 3D model.

HDI Compact 3D scanners

hdi-compact-L6-scanner

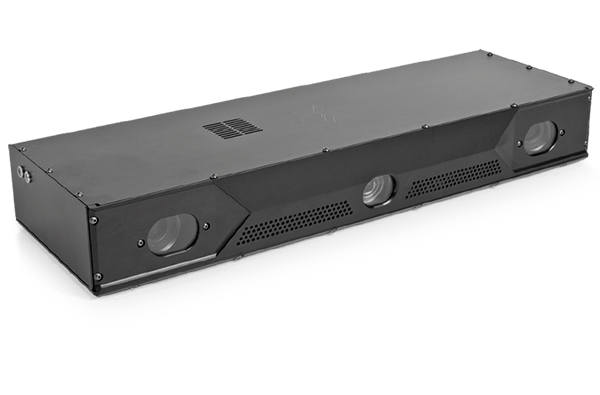

HDI Compact L6

Scan medium to large parts in high resolution and accuracy

Object size: 20 cm to 1 m

A pair of industrial 3 megapixel cameras

Dimension (mm): 55 x 129 x 400

Field of view (mm): 265 x 225 – 375 x 345

Point-to-Point Distance (mm): 0.18

Accuracy: Up to 80 micron

l6-angled-solo

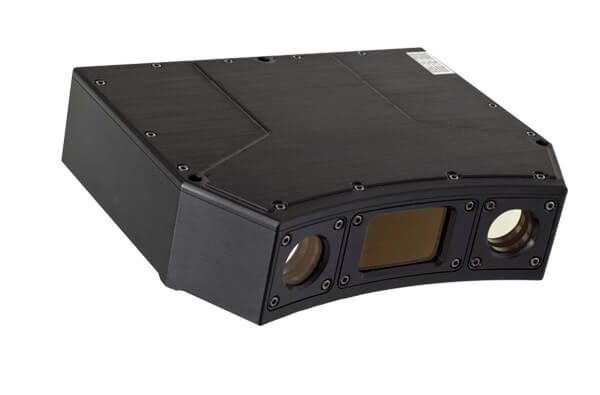

HDI Compact C210

Perfect for high resolution scanning of objects approximately the size of a shoe box

Object size: 5 to 30cm

A pair of 2 megapixel cameras

Dimension (mm): 49 x 146 x 190

Field of View (mm): 98 x 71 – 154 x 100

Point-to-Point Distance (mm): 0.06 – 0.09

Accuracy: Up to 35 micron

c210-standalone-600x475

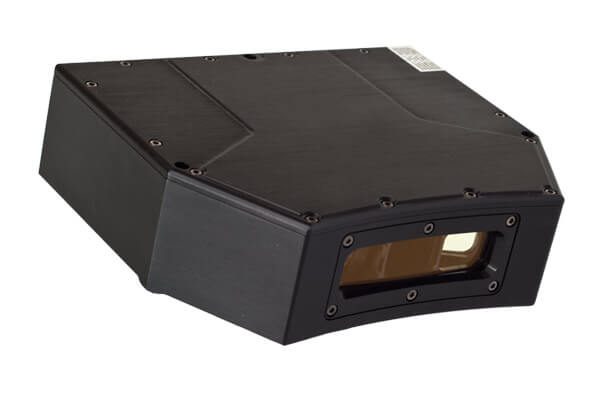

HDI Compact C506

Scan very small parts in high resolution and accuracy.

Object size: 3 to 10 cm

A pair of 5 megapixel cameras

Dimension (mm): 49 x 136 x 170

Field of view (mm): 45 x 27 – 45 x 30

Point-to-Point Distance (mm): 0.020 – 0.025

Accuracy: Up to 12 micron

c506-standalone-600x475

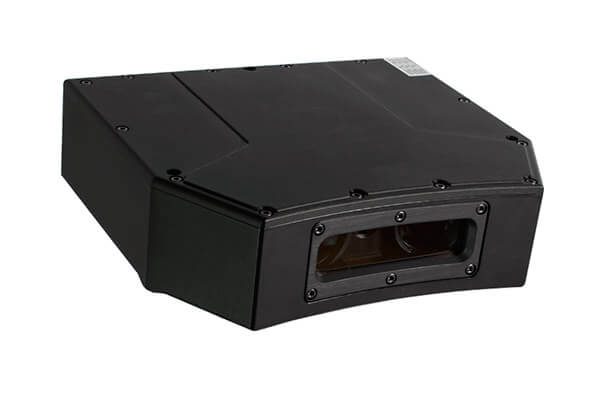

HDI Compact C504

3D scanning of extremely small parts of approximately 1 – 1.5 cm in high resolution and accuracy.

Object size: 0.5 to 3 cm

A pair of 5 megapixel cameras

Dimension (mm): 49 x 152 x 178

Field of view (mm): 13.2 x 12.1 – 15 x 13

Point-to-Point Distance (mm): 0.0067- 0.0071

Accuracy: Up to 6 micron

c504-standalone-600x475
HDI Compact S1

Capture professional quality scans at an affordable price.

Object size: 5 to 30 cm

A pair of industrial 1.3 megapixel cameras

Dimension (mm): 58 x 270 x 158

Field of view (mm): 65 x 58 – 90 x 80

Point-to-Point Distance (mm): 0.07

Accuracy: Up to 40 micron

hdi-compact-s1-3d-scanner-tilt-right

H3 Handheld

This handheld scanner was developed for professional use where mobility and flexibility matters. Scan wide range of objects ranging from 10 cm to the size of a human and enjoy precision scanning with great level of detail.

2 x 700 FPS – Monochrome or Colour Cameras

Field of view (mm): 205 x 112 to 455 x 252

Point-to-Point Spacing: 0.5mm or better

Data acquisition speed (points per second): up to 1.5 million

Accuracy: Up to 80 micron

Dimensions (mm): 280 x 200 x 60

Weight: 1.1 kg

HDI Carbon 3D scanners

3D-hdi-carbon-adjusting-lens-scanner

What if you can have a powerful 3D scanner that can easily adapt to scanning a variety of parts, while still easy to take with you on off-site projects? The HDI Carbon is your answer. It’s a crossover 3D scanner that combines flexibility and portability into one powerful system.

The HDI Carbon gives you the flexibility to scan objects of various sizes. The system has 2 camera mounting positions on the carbon fiber frame to adjust the scanner’s diagonal field of view from 225mm to 600mm.

High Accuracy, Amazing Resolution

  • Scan Speed: 1.2 seconds per scan
  • Accuracy: 35 microns (up to)  225 mm field of view
  • Average points: 2+ million per scan
  • Average polygons: 4+ million per scan

MeasureXL Portable CMM

measurexl-overview

MeasureXL Wireless Portable CMM is 3D measurement system that makes it simple to quickly probe 3D measurements for industry applications.

You have the freedom to measure what you need for work with MeasureXL optical coordinate measuring machine (CMM). The 3D digitizer consists of a wireless probe and an optical tracker to capture any measurements in real-time. It’s great for use when you need to take a few measurement points quickly with accuracy up to 0,25 mm. MeasureXL is efficient and versatile in a wide range of applications including reverse engineering and scientific measurement.

MeasureXL’s proprietary software has the ability to measure and create:

  • All types of 2D geometry (arcs, lines, and splines)
  • 3D geometry
  • Angles, distances, and points

Results are displayed immediately inside the software as you probe. When you’ve have taken the measurements, export directly to these file formats for use in other software applications:

  • IGES (CAD)
  • CSV (Text)

3D Scanner Accessories

Standard Rotary Table
  • 12.5 diameter high quality plastic plate
  • Scan parts up to 25 lbs
Heavy Duty Rotary Table
  • 14 diameter aluminum plate
  • Scan parts up to 50 lbs

FlexScan3D Software

hdi-carbon-computer-fs3d-scan

3D scanning software FlexScan3D has aligning, merging, and hole filling capabilities to transform 3D scans into a complete digital 3D model. It also comes with basic inspection tools for deviation analysis.

FlexScan3D is all you need to be more efficient at 3D modelling:

  • Capture 3D scans
  • Clean up scan data using advanced post-processing capabilities
  • Merge 3D scans into a full digital 3D model
  • Deviation analysis provides mesh-to-mesh comparison to determine accuracy level and for benchmarking
  • Export the output to common file formats: PLY, OBJ, STL, ASC, FBX

Great for applications including:

  • Reverse Engineering
  • Quality Inspection
  • Scientific Measurement
  • 3D Visualization

XTract3D Software

XTract3D Add-in is reverse engineering plug-in that works natively inside SOLIDWORKS. It’s designed to import 3D scanner data and use it as a reference for building CAD models (SCAN-to-CAD).

We all know building parametric CAD models can be a complicated process, but it doesn’t have to be this way. XTract3D gives you access to powerful slicing, fitting, and snapping tools for reverse engineering directly inside SOLIDWORKS.

Trace right on top of 2D cross sections of 3D scan data to create parametric CAD models with ease.

  • Work smarter, not harder
  • Simple tools for sketching
  • High Resolution Scan Data
