About Sintratec

Sintratec is the leading Swiss provider of first-class Selective Laser Sintering (SLS) solutions. The professional SLS 3D printing systems and resilient materials meet the highest industrial requirements. It enables to realize your ideas and designs in a fast and cost-effective way.

SLS technology is in wide use at many industries around the world due to its ability to easily make complex geometries with little to no added manufacturing effort.

Typical applications:

  • Prototype parts early in the design cycle such as for investment casting patterns, automotive hardware, and wind tunnel models
  • Small series manufacturing to produce end-use parts for aerospace, automotive, medical, and electronics hardware
  • Rapid manufacturing of tooling, jigs, and fixtures
  • Art
  • Research and Development

Sintratec S2

3D-bonum-consultation

The selective laser sintering (SLS) system consists of:

  • Laser Sintering Station (LSS),
  • Material Core Unit (MCU),
  • Material Handling Station (MHS),

Together these modules make up a uniquely self-contained process system for additive manufacturing.

Technical characteristics:

  • X-Y laser scanning system for fast printing
  • High-resolution camera for real-time monitoring
  • Touchscreen for direct operation
  • Network connection for remote control and monitoring
  • Contactless point measurement for powder surface temperature control
  • Multi-zone heating
  • Air filtration system
  • Build cylinder height: 400 mm
  • Build cylinder diameter: 160 mm

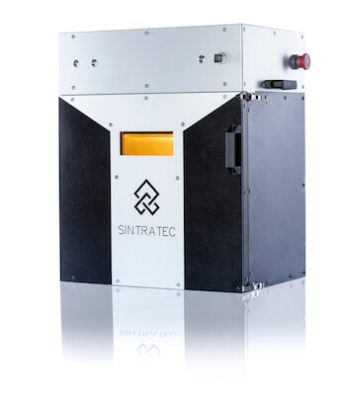

Sintratec Kit

Sintratec-Kit

The ideal first step into the world of selective laser sintering

The best low-price laser sintering solution

Particularly high-resolution printing results

The integrated “Sintratec Central” software to achieve great printing results

Technical characteristics:

  • Physical build volume: 110 × 110 × 110 mm
  • Volume available for printing: 90 × 90 × 90 mm
  • Layer height: 100 μm
  • Height × width × depth: 600 × 520 × 380 mm
  • Weight: 28 kg
  • Installation time (1 person): approx. 4 days

Sintratec Peripherals

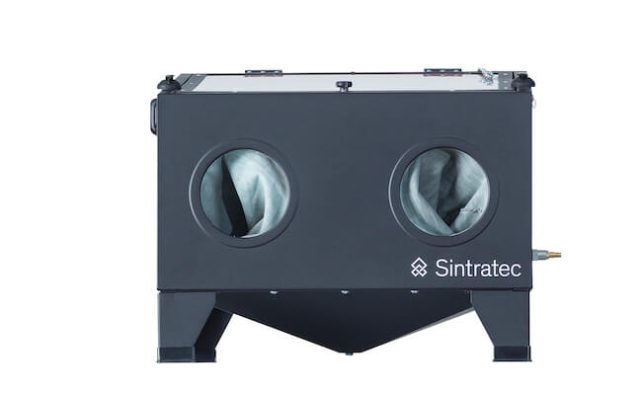

Sintratec Blasting Station:
  • Easily depowder SLS parts and improve surface finish
  • Clear view of the parts being processed
  • Ergonomic and efficient operation
Sintratec-Blasting-Station

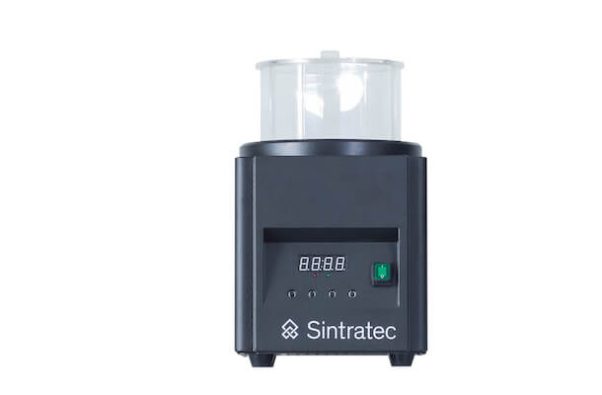

Sintratec Polishing Station:
  • Remove surface impurities of your prints and provide them with a smooth stainless steel finish
  • Simultaneous processing of several parts
Sintratec-Polishing-Station

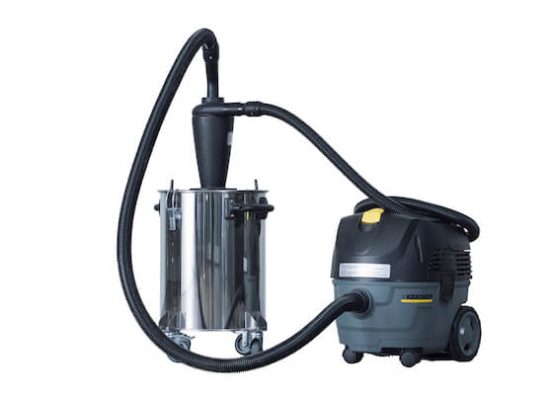

Sintratec Vortex Unit:
  • Easy removing excess and used powder
  • Collected Powder can be sieved and made available for the next print jobs
Sintratec-Vortex
